180° Elbow

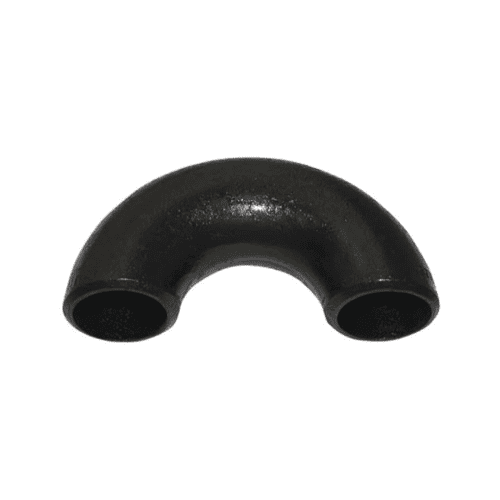

A pipe fitting widely utilized as a connection point between two pipe lengths to alter the flow direction within the pipe, typically at a 180-degree angle, is known as an elbow. Elbows are sometimes referred to as bends and are available in various materials, including nickel alloys, stainless steel, alloy steel, carbon steel, duplex, super duplex, and more. A long-radius 180-degree return bend facilitates a complete reversal of flow, while a 180-degree elbow allows for a reversal in pipe direction, often resulting in reduced pressure. These 180-degree elbows exhibit precise characteristics. Emcor Engineering  manufactures 180-degree elbows in different grade standards, sizes, and materials to meet specific application requirements. Skilled professionals and workers at Emcor Engineering work with exceptional precision to produce high-quality elbows.

The spacing from the elbow’s end to the centerline is 3 times the Nominal Pipe Size (NPS). A short-radius 180-degree return bend permits a full change in flow direction but with a significantly sharper turn. The gap from the elbow’s end to the centerline is 1 times the NPS.

CARBON STEEL SPECIFICATIONS:
  •  Size : 1/2″ to 24″NB , ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  •  Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
  •  Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  •  Low Temp. CS : ASTM A-420 WPL6
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
  • Size : 1/2″ to 24″NB, ANSI/ASME B 16.9
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
  •  Size : 1/2″ to 12″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •  Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  •  Copper Nickel : C70600(90:10), C71500(70:30), C71640
NICKEL ALLOYS SPECIFICATIONS:
  •  Size : 1/2″ to 12″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •  Nickel : UNS N02200, N02201
  •  Monel : UNS N04400, N05500, Alloy 20
  •  Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  •  Hastelloy : UNS N10276, N06022, N10665, N06455
  • SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23



TEST CERTIFICATE:
  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  •  TPI Inspection Release Note (as per customer requirement)
