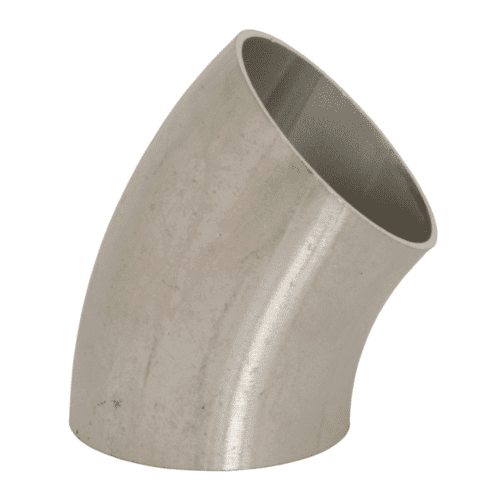

45° Elbow

Emcor stuff (13)

45° Elbow

A 45° pipe elbow, often referred to as a “45 bend” or “45 ell,” serves as a pipe fitting designed to connect pipes at a 45° angle. It is named for its ability to alter the direction of fluid or gas flow within the pipe by precisely 45 degrees. Emcor Engineering produces a diverse range of 45° pipe elbows, available in various sizes, grades, and dimensions, tailored to meet the specific requirements of valued clients. Emcor Engineering prioritizes the adherence to both national and international quality standards during the manufacturing process. These 45° elbows are compatible with pipes made from different materials, including Carbon Steel, Alloy Steel, stainless steel, LTCS, among others. Furthermore, Emcor Engineering can customize these elbows to meet various specifications concerning size and diameter.

When purchasing 45-degree elbows in bulk, buyers should consider factors like pressure, vibration, and temperature. These elbows change flow direction in piping systems. Our high-quality steel pipe elbows offer corrosion resistance. Emcor Engineering offers a range of butt-weld 45-degree elbows in various materials and sizes to meet customer needs.

CARBON STEEL SPECIFICATIONS:
  •  Size : 1/2″ to 64″NB , ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  •  Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
  •  Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  •  Low Temp. CS : ASTM A-420 WPL6
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
  •  Size : 1/2″ to 64″NB, ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
  •  Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •  Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  •  Copper Nickel : C70600(90:10), C71500(70:30), C71640
NICKEL ALLOYS SPECIFICATIONS:
  •  Size : 1/2″ to 24″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •   Nickel : UNS N02200, N02201
  •   Monel : UNS N04400, N05500, Alloy 20
  •   Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  •   Hastelloy : UNS N10276, N06022, N10665, N06455
  •  SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
  • Manufacturer test Certificate En 10204, 3.1 & 3.2
  • IBR Test Certificate Form IIIC
  •  TPI Inspection Release Note (as per customer requirement)
