Barrel Nipples

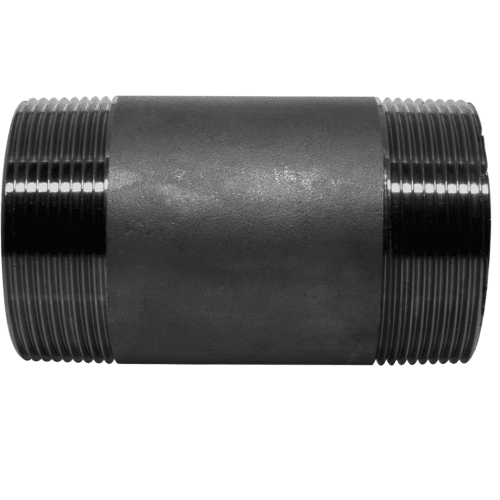

Barrel pipe nipples are sometimes called barrel nipples, and by default, they have tapered NPT threading at both ends with an unthreaded section in the middle. Nipples threaded at both ends are commonly known as T.B.E, which stands for threaded both ends. Regarding nipple length, it is defined as the overall length, including the threaded portions. Emcor Engineering is a renowned industry leader in the production and export of high-quality barrel nipples on a global scale. We offer custom specifications, dimensions, and sizes to meet the specific needs of our clients. Emcor Engineering adheres rigorously to national and international quality standards, ensuring cost-effective and top-notch products for our valued customers.
Emcor Engineering is renowned for its exceptional barrel nipples, known for their exceptional toughness, heightened mechanical strength, and the ability to withstand high-pressure and high-temperature environments. Our clients wholeheartedly endorse and deeply appreciate the outstanding qualities of our barrel nipples. These remarkable components are characterized by their extended lifespan, impressive tensile strength, resistance to corrosion, ruggedness, precise design, and ease of welding.
CARBON STEEL SPECIFICATIONS:
- Size : 1/2″ to 36″NB , ANSI/ASME B 16.9, B 36.10, B 36.19
- Schedule : 10/20/40/80/100/120/160/XXS
- Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
- Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
- Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
- Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
- Low Temp. CS : ASTM A-420 WPL6
- Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
- Size : 1/2″ to 36″NB, ANSI/ASME B 16.9, B 36.10, B 36.19
- Schedule : 10/20/40/80/100/120/160/XXS
- Stainless Steel : ASTM A 403 WP – TP                                                     304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
- Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
- Size : 1/2″ to 24″NB , ANSI/ASME B 16.9, B 36.10, B 36.19
- Schedule :10/20/40/80/100/120/160/XXS
- Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
- Copper Nickel : C70600(90:10), C71500(70:30), C71640
NICKEL ALLOYS SPECIFICATIONS:
- Size : 1/2″ to 24″NB , ANSI/ASME B 16.9, B 36.10, B 36.19
- Schedule :10/20/40/80/100/120/160/XXS
- Nickel : UNS N02200, N02201
- Monel : UNS N04400, N05500, Alloy 20
- Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
- Hastelloy : UNS N10276, N06022, N10665, N06455 SMO 254 Grade UNS S31254
- Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
- Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
- Â Manufacturer test Certificate En 10204 3.1 & 3.2
- Â IBR Test Certificate Form IIIC
- TPI Inspection Release Note (as per customer requirement)
