CAP

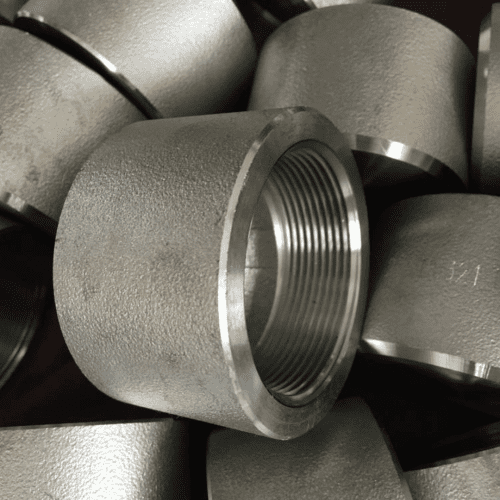

A Socket Weld Cap serves as a pipe attachment detail wherein a pipe is inserted into a recessed area of a valve, fitting, or flange. Unlike butt-weld fittings, Socket Weld Fittings primarily find utility in smaller pipe diameters. Fillet-type seal welds are employed to connect pipes to valves, fittings, or other pipe segments. The construction of Socket Welded Joints is a preferred choice when ensuring high leakage integrity and robust structural strength are vital design considerations. This type of joint is commonly employed in industries such as oil and gas, petrochemicals, energy projects, hydraulics, and pneumatics, among others.

Pipe caps serve as protective devices, specifically designed to safeguard the ends of pipes with various shapes. Their primary function is to provide waterproofing for connections. These caps find extensive applications in domestic, commercial, and industrial water supply lines, plumbing systems, machinery, and processing equipment. They are also crucial components in hydraulic or pneumatic pipe and tube systems. Moreover, they are employed on water pump lines to effectively eliminate air blocks. Consequently, pipe caps stand as a highly sought-after category within the realm of pipe fittings, with Emcor Engineering playing a pivotal role as manufacturers and exporters of these essential components.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QT
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS FORGED FITTINGS:

  • Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL FORGED FITTINGS :

  • Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS FORGED FITTINGS :

  • Size : 1/2″ NB to 4″ NB(Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
