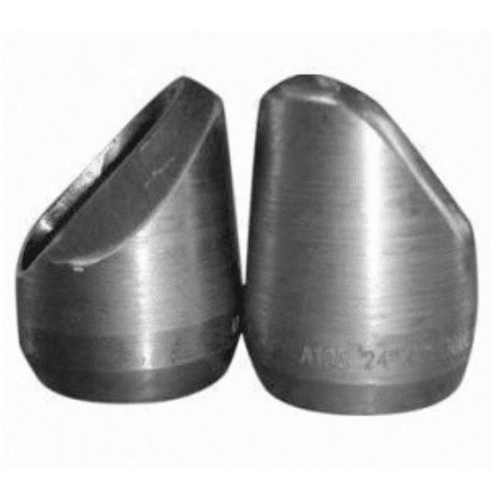

ELBOLET

Emcor Engineering produces Elbolet fittings, suitable for both 90° Long Radius Elbows and Short Radius Elbows used for thermowell and instrumentation connections. These Elbow Outlets facilitate reinforced fitting connections and are highly reliable and well-constructed. Emcor Engineering offers a wide range of Elbolet options in various sizes and materials, including stainless steel, duplex steel, alloy steel, and carbon steel. Besides thermowell and instrumentation connections, they can also serve as drain connections when space is limited. These versatile fittings come with buttweld, socket weld, or threaded connections, providing strength and resistance to harsh environments like mines. Emcor Engineering ensures prompt delivery through technology advancements and an experienced sales team.

Emcor Engineering manufactures high-quality Elbolets in a state-of-the-art facility using advanced production techniques and modern equipment. Our Elbolets adhere to all industry standards and are ideal for high-pressure, high-temperature, large-diameter, and thick-wall pipes. They offer reliability, affordability, simplicity, excellent flow, and ease of customization. Emcor Engineering specializes in forging the body of these outlets and offers a range of materials including carbon steel, alloy steel, and stainless steel. Our Elbolets can be used for various applications, including butt welding, socket welding, and threaded connections, as well as with other fittings such as nipples, threaded plugs, instruments, and valves.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QT
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB,
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
