ELBOW

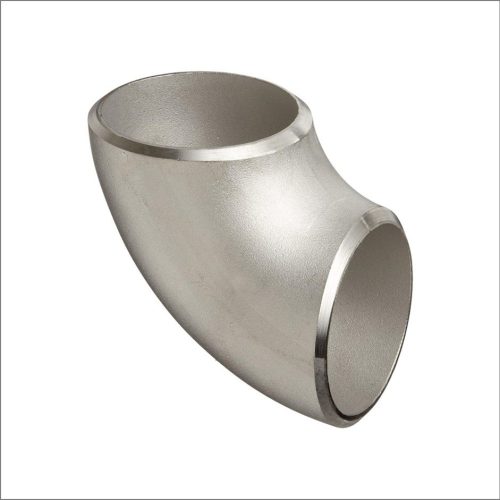

Butt-Weld-Short-Radius-Elbow

ELBOW

Welded elbows are components that are joined together by welding pipes and allow fluids such as liquids, vapours, gases, and so on to pass through. It is utilized in a variety of industries, including power plants, gas and petrochemical plants, water treatment plants, shipyards, and so on. Weld-on fittings include L-shaped elbows that change piping direction, T-shaped tees that can branch fluids, reducers that connect pipes of varying sizes, gaskets that prevent fluid and gas leaks, and so on. Emcor Engineering is a manufacturer of Buttweld Fittings and supplies high quality Buttweld Welded Elbow at competitive pricing. Welding buttocks The durability, accuracy, and precision of welded elbows are tested and certified.

A welded elbow is a type of pipe fitting that connects two pipes. The primary goal is to alter the path of events. Steel elbows, as we all know, are classed by degree, with 45-degree steel pipe elbows, 90-degree steel pipe elbows, and 180-degree steel pipe elbows being the most common. In the case of exceptional requirements, other degrees such as 60° or 120° are also employed in pipeline systems. Bending the plate, which is then welded into circular, square, and other shapes, is the first step in the manufacturing process. Welded elbows offer great production capacity, cheap cost, and material conservation. Emcor Engineering is a dynamic group that was founded over a decade ago to meet the increasing need for Socket Weld 90° Elbow standards in Elbows.

CARBON STEEL SPECIFICATIONS:
  •  Size : 2″ to 80″NB , ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  •  Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
  •  Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  •  Low Temp. CS : ASTM A-420 WPL6
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
  •  Size : 2″ to 80″NB, ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Stainless Steel : ASTM A 403 WP – TP                                                                                                      304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539

DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
  •  Size : 2″ to 48″NB , ANSI/ASME B 16.9, MSS-SP-75
  •  Schedule :10/20/40/80/100/120/160/XXS
  •  Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  •  Copper Nickel : C70600(90:10), C71500(70:30), C71640
NICKEL ALLOYS SPECIFICATIONS:
  •  Size : 2″ to 48″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •   Nickel : UNS N02200, N02201
  •   Monel : UNS N04400, N05500, Alloy 20
  •   Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  •   Hastelloy : UNS N10276, N06022, N10665, N06455
  •  SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23

TEST CERTIFICATE:

  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  Radiography – 100% R.T. OK
  • TPI Inspection release note (as per customer requirement)
