END CAP

Emcor stuff (1)

END CAP

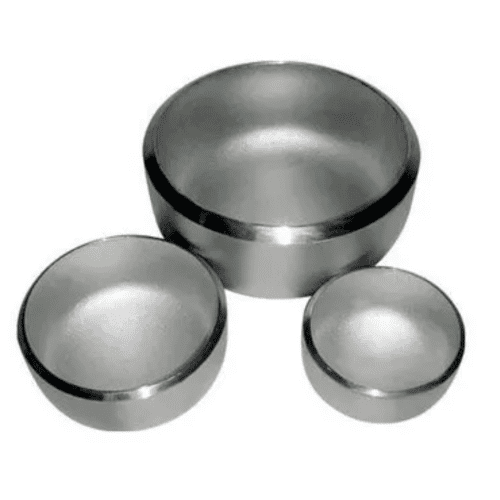

Emcor Engineering  specializes in crafting end caps designed to safeguard the ends of pipes and various fittings. These end caps are meticulously shaped to match the contours of the pipelines they are intended to protect. Our company offers a comprehensive selection of end caps, featuring a wide range of shapes, materials, diameters, sizes, and dimensions. We take pride in tailoring these end caps to meet the unique requirements of our clients, providing customized specifications as needed.

End caps serve as protective enclosures for tubing and pipes across diverse industries. Emcor Engineering buttweld end caps are competitively priced, offering you the most competitive rates in the market. These end caps adhere to all standard dimensions, ensuring compatibility with a wide array of applications. Our buttweld fittings undergo rigorous testing and verification processes to guarantee durability, accuracy, and precision in every product we manufacture.

Emcor Engineering offers a convenient solution for capping pipelines with their easy-to-install end caps. They provide a range of end caps and dished ends in various sizes, materials, and dimensions.

Emcor Engineering offers a variety of dished ends, including:

  1. 2:1 Semi Ellipsoidal
  2. Torispherical
  3. Flat Bottom
  4. Hemispherical
  5. Floating Heads
  6. Ladle Bottom for EAF

CARBON STEEL SPECIFICATIONS:

  • Size : 1/2″ to 80″NB , ANSI/ASME B 16.9, MSS-SP-75
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  • Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

ALLOY STEEL, & LTCS SPECIFICATIONS:

  • Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  • Low Temp. CS : ASTM A-420 WPL6
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

STAINLESS STEEL SPECIFICATIONS:

  • Size : 1/2″ to 80″NB, ANSI/ASME B 16.9, MSS-SP-75
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 403 WP – TP 304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539

DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:

  • Size : 1/2″ to 48″NB , ANSI/ASME B 16.9, MSS-SP-75
  • Schedule :10/20/40/80/100/120/160/XXS
  • Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640

NICKEL ALLOYS SPECIFICATIONS:

  • Size : 1/2″ to 48″NB , ANSI/ASME B 16.9, MSS-SP-75
  • Schedule :10/20/40/80/100/120/160/XXS
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  • Hastelloy : UNS N10276, N06022, N10665, N06455
  • SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection release note (as per customer requirement)
