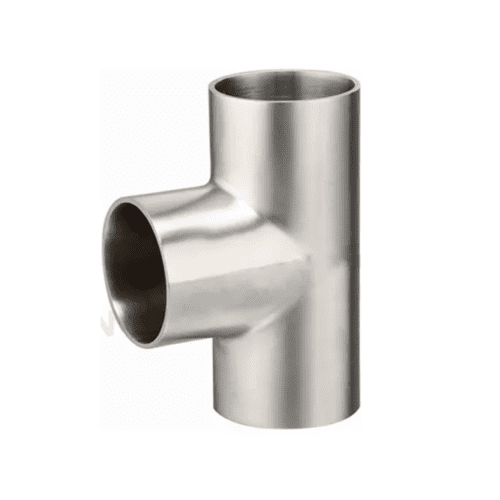

Emcor stuff (10)

Equal Tee

The most prevalent type of pipe fitting is the tee, which is employed to either combine or split fluid flow. Tees are versatile components that can connect pipes of varying diameters or redirect the direction of a pipe run, or even accomplish both tasks simultaneously. They come in a range of materials, sizes, and finishes, making them suitable for transporting two-fluid mixtures as well. Tees can be categorized as Equal Tees or Unequal Tees based on the size of their three connections, with Equal Tees being the more commonly used variant. Emcor Engineering specializes in manufacturing and exporting high-quality Equal Tees. These tees are employed to alter the direction of pipe runs and join pipes of differing diameters within other pipe runs, making them particularly well-suited for applications involving elevated temperatures. Furthermore, Emcor Engineering produces and delivers these tees to customers in accordance with their specific requirements and provided specifications.

Emcor Engineering specializes in the production of Equal and Unequal Tees, Reducing Pipe Tees, as well as elbows with various schedule and wall thickness options. Our products are crafted using the Mandrel method and adhere to the weld preparation standards outlined in ASME B16.25. These high-quality fittings are readily available from our stock or can be delivered quickly to cater to the needs of the Oil, Gas, Nuclear, Petro-Chemical, and Process Industries. In addition to our extensive tee offerings, we also provide trimmed elbows and elbows with tangent, ensuring we meet the diverse requirements of our clients in the manufacturing and export sectors.

CARBON STEEL SPECIFICATIONS:
  • Size : 1/2″ to 80″NB , ANSI/ASME B 16.9
  • Schedule : 10/20/40/80/100/120/160/XXS
  •  Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  •  Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
  •  Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  •  Low Temp. CS : ASTM A-420 WPL6
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
  •  Size : 1/2″ to 80″NB, ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
  •  Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •  Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  •  Copper Nickel : C70600(90:10), C71500(70:30), C71640
NICKEL ALLOYS SPECIFICATIONS:
  •  Size : 1/2″ to 36″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •   Nickel : UNS N02200, N02201
  •   Monel : UNS N04400, N05500, Alloy 20
  •   Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  •   Hastelloy : UNS N10276, N06022, N10665, N06455
  •  SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  •  TPI Inspection Release Note (as per customer requirement)
