ORIFICE FLANGE

Emcor stuff (83)

ORIFICE FLANGE

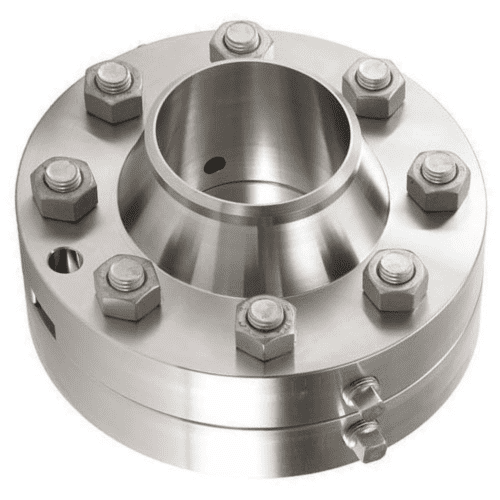

Orifice flanges are essential for measuring fluid flow in pipelines using flow nozzles. They feature pressure tappings, eliminating the need for separate wall tapings. This assembly includes flanges, an orifice plate, bolts, nuts, gaskets, jacking screws, and plugs for easy element removal. When assembled during pipeline connections, it’s called an orifice flange amalgamation, mainly used for metering gas or liquid flow. Emcor Engineering offers customizable orifice flanges in various sizes and specifications, all provided with test certificates, and competitively priced.

Orifice flanges are placed in a straight pipe section to minimize turbulence near the plate. Typically, they require ten pipe diameters upstream and five downstream for optimal performance. Orifice flanges are commonly paired with orifice meters for precise fluid flow measurement, especially for oil and gas pipelines. Standard assembly components include gaskets, nuts, bolts, plugs, plates, flanges, and jacking screws, simplifying the removal of the primary flow element. Emcor Engineering is a leading manufacturer and exporter of these components.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 80″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS SPECIFICATION:

  • Size : 1/2″ NB to 80″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 1/2″ NB to 64″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L,XM19
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
