Reducer

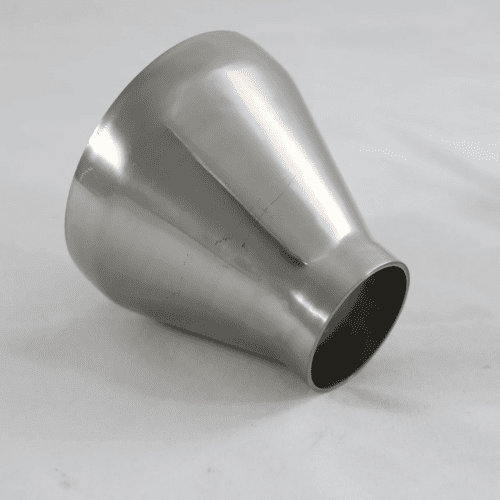

Emcor Engineering specializes in producing and exporting reducer pipe fittings, which are essential pipeline components that reduce the pipe’s diameter from a larger to a smaller size. These fittings come in two primary forms: Seamless Reducer and Welded Reducer. We are dedicated to delivering pipe reducers of international quality, crafted from steel and various alloys.

The concentric type of reducer is not only easier and more cost-effective to manufacture but also offers some unique advantages. However, it may not provide precisely the same benefits as other types.

Emcor Engineering offers a wide range of Buttweld reducer fittings, available in various sizes, thicknesses, and dimensions. These high-quality fittings are suitable for diverse applications, including oil, gas, power plants, docks, water treatment plants, shipbuilding, and chemical and petrochemical industries.

Emcor Engineering is your premier source for a wide range of reducer butt weld pipe fittings, available in various categories including Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, Inconel, Monel, Hastelloy, SMO 254, and more. Our commitment to excellence is reflected in the design and production of these fittings, which adhere to rigorous international quality standards. With state-of-the-art infrastructure facilities, we ensure the highest levels of quality in every product we offer.

TYPES :

  • Concentric Reducer
  • Eccentric Reducer

CARBON STEEL SPECIFICATIONS:

  • Size : 1/2″ to 80″NB , ANSI/ASME B 16.9
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  • Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

ALLOY STEEL, & LTCS SPECIFICATIONS:

  • Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  • Low Temp. CS : ASTM A-420 WPL6
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

STAINLESS STEEL SPECIFICATIONS:

  • Size : 1/2″ to 80″NB, ANSI/ASME B 16.9
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539

DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:

  • Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
  • Schedule :10/20/40/80/100/120/160/XXS
  • Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640

NICKEL ALLOYS SPECIFICATIONS:

  • Size : 1/2″ to 36″NB , ANSI/ASME B 16.9
  • Schedule :10/20/40/80/100/120/160/XXS
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  • Hastelloy : UNS N10276, N06022, N10665, N06455
  • SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
