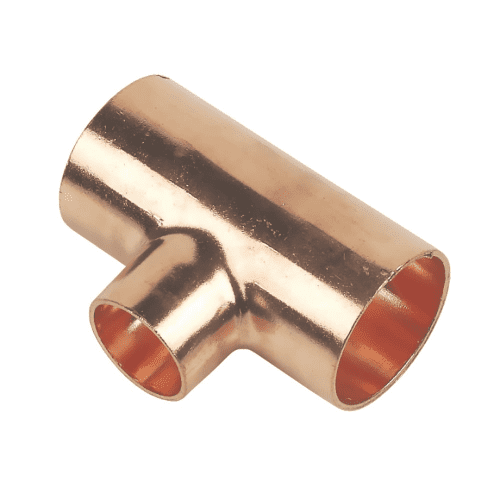

Reducing Tee

The primary function of a Tee in piping systems is to create a 90° branch from the main pipeline. Typically, there are two types: the equal tee and the reducing tee. An equal tee, also known as a straight tee, is used when the branch has the same diameter as the main pipeline. Conversely, a reducing tee, or unequal tee, is employed when the branch has a smaller diameter than the main pipeline. The Buttweld reducing tee fitting features a branch port that is smaller than the pipe run. The equal tee is suitable when the branch and the pipe have the same diameter, while a reducing tee is necessary when the branch diameter is smaller than that of the run pipe. Additionally, it’s important to consider the impact of size reduction from one of the run ports to the other.

Transforming Emcor Engineering manufacturers and exporters into Emcor Engineering is not possible as it involves changing the name and identity of a company, which would require legal and administrative processes and cannot be done through a simple rephrasing.

Emcor Engineering specializes in producing and exporting pipe Tee fittings that adhere to rigorous international quality standards. These Buttweld reducing Tee fittings are crafted from various materials, including CS Tee, SS Tee, LTCS Tee, Alloy steel Tee, Duplex steel tee, Super Duplex Tee, Hastelloy tee, Inconel tee, Monel Tee, SMO 254 Tee, Nickel Tee, and more. They are designed to facilitate smooth flow pathways, minimizing turbulence. The Buttweld reducing Tee fitting finds applications in wastewater treatment, water supply systems, and ultra-pure systems.

CARBON STEEL SPECIFICATIONS:

  • Size : 1/2″ to 80″NB , ANSI/ASME B 16.9
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  • Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

ALLOY STEEL, & LTCS SPECIFICATIONS:

  • Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  • Low Temp. CS : ASTM A-420 WPL6
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
  • STAINLESS STEEL SPECIFICATIONS:
  • Size : 1/2″ to 80″NB, ANSI/ASME B 16.9
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539

DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:

  • Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
  • Schedule :10/20/40/80/100/120/160/XXS
  • Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640

NICKEL ALLOYS SPECIFICATIONS:

  • Size : 1/2″ to 36″NB , ANSI/ASME B 16.9
  • Schedule :10/20/40/80/100/120/160/XXS
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  • Hastelloy : UNS N10276, N06022, N10665, N06455
  • SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  •  TPI Inspection Release Note (as per customer requirement)
