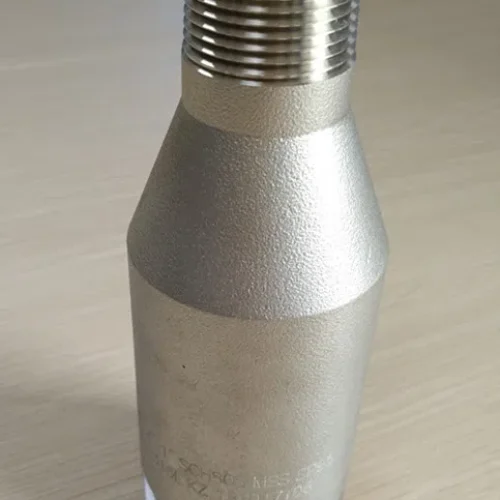

Swage Nipples
Emcor Engineering is a manufacturer of Forged Fittings Swage Nipple that supplies high quality Swage Nipple at competitive pricing. Forged Fittings Swage Nipple are intended for usage in a variety of sectors, including oil refineries, chemical processing, petrochemicals, and many more. These Fittings are made to withstand extreme heat and pressure. Emcor Engineering manufactures all swage nipples from seamless pipe or bar material and have working pressures similar to straight seamless pipes. They manufacture stainless steel swage nipples and carbon steel swage nipples with high-quality raw materials (steel pipes, bar stock). They are permanently labeled with the following information: size, schedule, grade, and heat code.
Swages, also known as Swage Nipples, are pipe connection fittings used to connect one size tubing or casing to another. Swage Nipples are available with plain, bevelled, or threaded ends from Emcor Engineering. Swage nipple thickness and outer diameters must match those of the corresponding nominal pipe size. Emcor Engineering is a Forged Swage Nipple producer with unrivaled quality, finish, and operational capability. Swage nipples are available in two types: Concentric Swage Nipple and Eccentric Swage Nipple. For production purposes, we adhere to all requirements specified by our valued client and ensure that the product satisfies international quality standards.
CARBON STEEL SPECIFICATION:Â Â Â Â Â Â Â Â Â Â Â
- Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
- Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-95
- Carbon Steel : ASTM A 105
- Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QT
- Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.
ALLOY STEEL & LTCS FORGED FITTINGS:
- Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
- Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-95
- Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
- Low Temp.CS : A 350 LF2
- Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.
STAINLESS STEEL & DUPLEX STEEL FORGED FITTINGS :
- Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
- Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-95
- Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L
- Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
- Duplex Steel : ASTM A 182 F -51, F 53, F 55
NICKEL ALLOYS FORGED FITTINGS :
- Size : 1/2″ NB to 4″ NB(Socket Weld & Threaded)
- Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-95
- Copper Nickel : C70600(90:10), C71500(70:30), C71640
- Nickel : UNS N02200, N02201
- Monel : UNS N04400, N05500, Alloy 20
- Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
- Hastelloy : UNS N10276, N06022, N10665, N06455,
- SMO 254 Grade UNS S31254
- Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
- Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
TEST CERTIFICATE:
- Â Manufacturer test Certificate En 10204 3.1 & 3.2
- Â IBR Test Certificate Form IIIC
- TPI Inspection Release Note (as per customer requirement)
