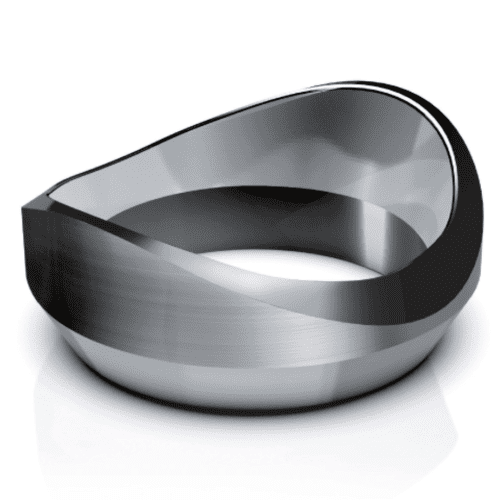

WELDOLET

Weldolets stand as the predominant choice among branch fittings, offering a broad spectrum of dimensional options. Featuring beveled ends on both sides, a Weldolet is welded onto the run pipe on one end and the branch pipe on the other. The unique shape of the Weldolet is designed to distribute stress evenly on the branched pipe, providing integral reinforcement. Emcor Engineering produces Weldolets, the most widely used type of branch connection fitting, typically attached by butt welding to the outlet pipe. Its beveled ends facilitate this welding process, categorizing Weldolets as butt-weld fittings. These fittings are meticulously engineered to minimize stress concentration and enhance overall structural integrity.

Emcor Engineering with its extensive industry experience and advanced manufacturing facilities, excels in producing high-quality Weldolets in various sizes, shapes, standards, and dimensions. Emcor Engineering is a renowned manufacturer of a diverse range of industrial products, ideally suited for deployment across a wide array of commercial and industrial applications. The company places a premium on customer satisfaction by offering a comprehensive range of products in different materials and grades, all competitively priced.

Weldolets are branch connections intended for welding, designed to meet or surpass the pipe’s schedule. Each Weldolet is clearly labeled with an outlet size and compatible pipe sizes for welding. This fitting is particularly suitable for high-pressure applications and is welded onto the outlet of the main pipe. The ends are beveled to facilitate the welding process, making Weldolets a type of butt weld fitting. They offer a cost-effective solution for branch connections, aiming to minimize stress concentration and provide built-in reinforcement. These Welding Outlet products exhibit excellent thermal stability, corrosion resistance, and weldability properties, among other attributes. They are available in various corrosion-resistant alloys and can be utilized in a wide range of applications. Emcor Engineering manufactures and exports Weldolets, ensuring they meet your specific reinforcement requirements.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QT
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB,
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
