LONG RADIUS BEND

3D Pipe Bend Manufacturers in India

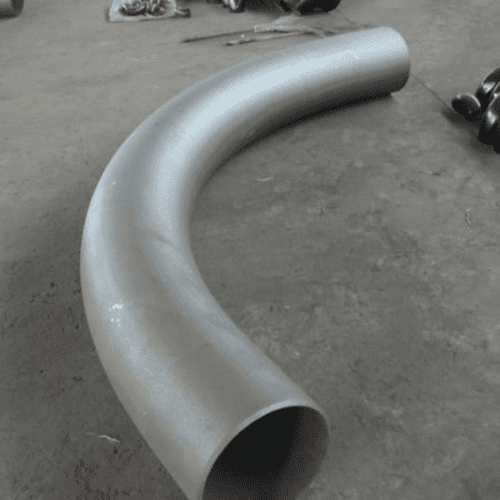

LONG RADIUS BEND

In Mumbai, India, Emcor Engineering  stands as a prominent manufacturer and exporter of premium-quality ASME/ANSI B16.9 Long Radius Bends. These long radius bends are particularly well-suited for robust pipe systems, thanks to their elongated design that facilitates efficient debris removal and helps prevent blockages. With a generous radius measuring 1.5 times the diameter of the pipes, our ANSI B16.9 long radius bends offer straightforward installation and ample flexibility to accommodate pipeline expansions and contractions.

Emcor Engineering  produces top-notch Long Radius Bends characterized by numerous advantages, including exceptional dimensional precision, elevated tensile strength, resistance to heat, superb surface finishes, and outstanding mechanical properties. These items have undergone rigorous quality assurance tests and have gained approval for their application in product manufacturing. The manufacturing process is meticulously conducted under the vigilant oversight of our skilled professionals.

CARBON STEEL SPECIFICATIONS:

  •  Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  •  Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

ALLOY STEEL, & LTCS SPECIFICATIONS:

  •  Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  •  Low Temp. CS : ASTM A-420 WPL6
  •  Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

STAINLESS STEEL SPECIFICATIONS:

  •  Size : 1/2″ to 48″NB, ANSI/ASME B 16.9
  •  Schedule : 10/20/40/80/100/120/160/XXS
  •  Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539

DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:

  •  Size : 1/2″ to 24″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •  Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  •  Copper Nickel : C70600(90:10), C71500(70:30), C71640

NICKEL ALLOYS SPECIFICATIONS:

  •  Size : 1/2″ to 24″NB , ANSI/ASME B 16.9
  •  Schedule :10/20/40/80/100/120/160/XXS
  •   Nickel : UNS N02200, N02201
  •   Monel : UNS N04400, N05500, Alloy 20
  •   Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  •   Hastelloy : UNS N10276, N06022, N10665, N06455
  •  SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23

TEST CERTIFICATE:

  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection release note (as per customer requirement)
