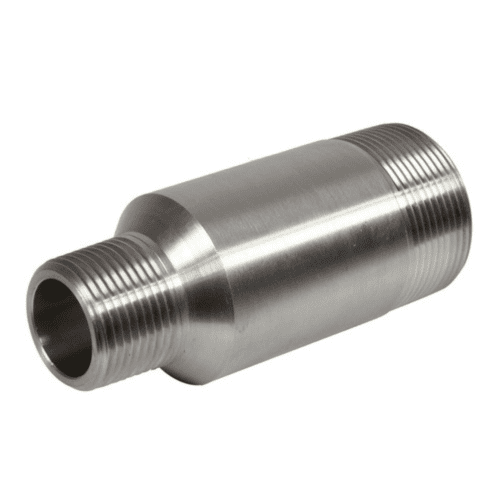

Swage Nipples

Emcor Engineering specializes in the production and export of swage nipples, which are essential for transitioning fluid flow between pipes of different sizes. These swage nipples are available in two distinct types: concentric swage nipples, primarily designed for vertical pipelines, and eccentric swage nipples, ideal for horizontal pipelines. Emcor Engineering caters to the unique requirements of its customers by offering a wide range of dimensions, sizes, materials, and standards for swage nipples.

Customers highly value Emcor Engineering swage nipples due to their exceptional quality, longevity, lightweight construction, high durability, and precise dimensions.

Emcor Engineering  provides customers with a range of high-quality products at competitive market prices. Swage nipples are essential components used in the oil, gas, and petrochemical industries to ensure a secure connection between two pipes, guaranteeing a leak-free flow of liquids and gases.

SOME OF THE FEATURES ARE:

  • Used High Quality Materials
  • Long service life
  • Durable
  • Easy to Install

CARBON STEEL SPECIFICATIONS:

  • Size : 1/2″ to 36″NB , ANSI/ASME B 16.11, MSS SP 95
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
  • Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

ALLOY STEEL, & LTCS SPECIFICATIONS:

  • Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
  • Low Temp. CS : ASTM A-420 WPL6
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE

STAINLESS STEEL SPECIFICATIONS:

  • Size : 1/2″ to 36″NB, ANSI/ASME B 16.11, MSS SP 95
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 403 WP – TP                                                                                                          304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
  • Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539

DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:

  • Size : 1/2″ to 24″NB , ANSI/ASME B 16.11, MSS SP 95
  • Schedule :10/20/40/80/100/120/160/XXS
  • Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640

NICKEL ALLOYS SPECIFICATIONS:

  • Size : 1/2″ to 24″NB , ANSI/ASME B 16.11, MSS SP 95
  • Schedule :10/20/40/80/100/120/160/XXS
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
  • Hastelloy : UNS N10276, N06022, N10665, N06455
  • SMO 254 Grade UNS S31254
  • Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
  • Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
  •  Manufacturer test Certificate En 10204 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
