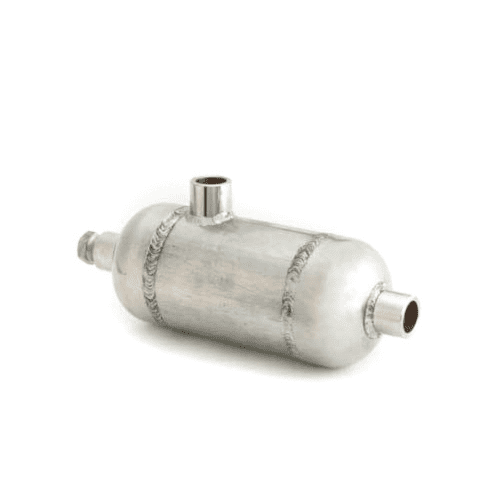

CONDENSATE POT

Condensate pots are vital in steam applications, accumulating condensed water to maintain fluid volume and accuracy in differential pressure flow measurement. Typically made from stainless steel for corrosion resistance, they require heat tracing and insulation on impulse lines. Positioned at the same height, they ensure a constant condensate level, preserving accuracy and minimizing gauge line errors. Emcor Engineering produces high-quality condensate pots using advanced technology, enhancing productivity and efficiency. These pots also serve to protect transmitters when measuring corrosive fluids.

Condensate pots function by isolating steam vapor between process tapping and the pot, while water is present between the pot and the differential pressure transmitter, preventing measurement errors from liquid-vapor mix. The material’s composition, including molybdenum, tungsten, carbon, and silicon, enhances its strength and corrosion resistance. Equal lengths of high-pressure and low-pressure impulse lines are essential to eliminate pressure head errors. Each impulse line necessitates one condensate pot.

CARBON STEEL & ALLOY STEEL SPECIFICATION:

  • Size : 10 mm to 100 mm & 1/2” to 4”
  • ASTM/ASME A/SA A105, LF2
  • ASTM/ASME A/SA F11, F22, F91 F12, F5, F9,



STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 10 mm to 100 mm & 1/2” to 4”
  • ASTM/ASME A/SA-182, 310, 321, 317L, 347, 309, 409, 410, 420, 430, 440, 904L, F304/304L/304H, 316/316L/316H/316Ti etc.
  • Duplex steel : UNS S32205, S31803
  • Super Duplex Steel : UNS S32750, S32760



NICKEL ALLOYS SPECIFICATION:

    • Size : 10 mm to 100 mm & 1/2” to 4”
    • Nickel : UNS N02200, N02201, Alloy 20,
    • Copper Nickel : C70600(90:10), C71500(70:30)
    • Hastelloy : UNS N10276, N06455, N06022, N10665,
    • Monel : UNS N04400, N05500,
    • Inconel : UNS N06600, N06625, N08825, N06601, N08800, N08810,
    • SMO 254 Grade UNS S31254
    • Aluminium : 2024, 6061, 6063, 6101, 7075.
    • Titanium : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23.

Test Certificate:

    •  Manufacturer test Certificate En 10204, 3.1 & 3.2
    • TPI Inspection Release Note (as per customer requirement)
