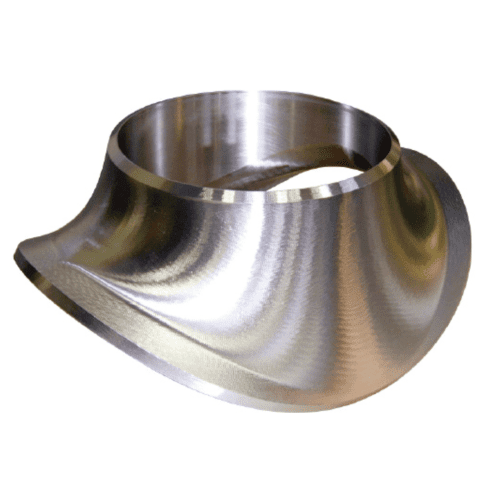

SWEEPOLET

Emcor Engineering specializes in producing high-quality Sweep Outlets, known for their low stress intensification factor, durability, and ease of inspection using non-destructive techniques like radiography and ultrasound. These products are tailored to meet specific reinforcement requirements and come in various sizes and materials such as stainless steel, duplex steel, alloy steel, and carbon steel. Emcor Engineering is renowned for its timely delivery, modern manufacturing equipment, and skilled staff, ensuring top-notch industrial products without compromising quality. Customers appreciate the excellent performance and quality of their offerings.

Emcor Engineering is one of India’s leading manufacturers of Sweepolet. Sweepolet offers exceptional resistance to chloride-ion stress-corrosion cracking and various oxidizing environments. It is highly resistant to chemical corrosion, oxidation, and exhibits excellent stress-rupture performance with low creep rates after appropriate heat treatment. With a wide range of alloy grades available, Sweepolet is suitable for diverse media and corrosive conditions. Emcor Engineering ensures top-quality products by using high-grade raw materials from trusted suppliers.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QT
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB,
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11, MSS SP-97, 95, 79, 83, BS 3799
  • Schedule : 10/20/40/80/100/120/160/XXS, in MSS SP-97, 95, 79, 83, BS 3799
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
