BLIND FLANGE

Emcor stuff (78)

BLIND FLANGE

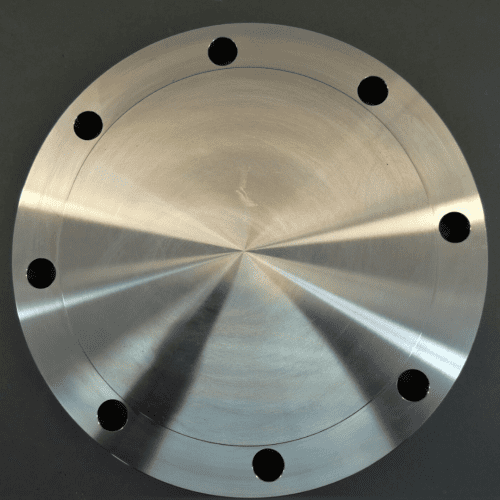

Emcor Engineering is a prominent manufacturer and exporter of Blind Flanges, crucial for sealing pipe ends, valves, and pressure vessel openings. These flanges, featuring gasket sealing rings and mounting holes, effectively block pipelines and ensure a removable, high-quality seal. They are void of a bore, ideal for terminating or isolating piping systems, and excel under high pressure and temperature conditions. Blind flanges find application across diverse industries such as petrochemical, oil and gas, power plants, shipbuilding, water treatment, and more. Their use has streamlined pipeline construction and simplified repair and replacement processes, enhancing efficiency worldwide.

Blind flanges find common use in petrochemical, pipe engineering, and water works. They serve for pipeline repairs and are often integrated during construction. These flanges may feature various sealing faces like flat, raised, ring type joint, or groove faces. Cast iron styles are outdated, favoring modern hub or hubless blind flanges. Emcor Engineering manufactures and exports these flanges.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 80″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS SPECIFICATION:

  • Size : 1/2″ NB to 80″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 1/2″ NB to 64″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L,XM19
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
