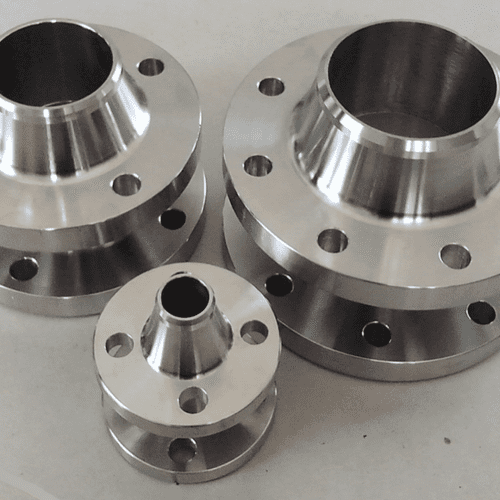

REDUCING FLANGE

Emcor Engineering a prominent leader in the Indian market, manufactures and exports Reducing Flanges, ideal for connecting pipes of varying sizes. These flanges feature a unique design with one diameter for the flange and a smaller bore diameter, making them versatile for diverse pipe connections. They are suitable for all pressure classes and find extensive use in power plants and industrial vessels, offering reliability, precision, and durability.

Emcor Engineering produces Reducing Flanges with a distinct smaller bore diameter within a standard-sized flange, ideal for high-pressure systems like condensers and boilers. These flanges match hub dimensions and bore diameter of the standard flange size. We offer customizable options for thickness, size, and specifications to meet unique requirements at competitive prices. Our Reducing Flanges are in high demand due to their corrosion-resistant finish, optimal strength, durable construction, and precise dimensions.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 80″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QH
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS SPECIFICATION:

  • Size : 1/2″ NB to 80″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL SPECIFICATION:

  • Size : 1/2″ NB to 64″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L,XM19
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS SPECIFICATION:

  • Size : 1/2″ NB to 48″ NB
  • Dimensions: ANSI/ASME B 16.5, B16.47, B16.36, DIN Standard, JIS Standard, EN1902-1 Standard, UNI Standard, BS10 Standard, BS4504 Standard, API Standard etc.
  • Class : 150# , 300#, 400#, 600#, 900#, 1500#, 2500#
  • Schedule : 10/20/40/80/100/120/160/XXS
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
