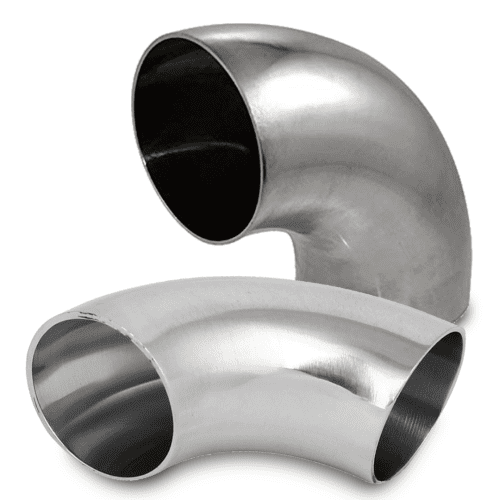

90° Elbow
This is a fitting component that’s bent to create a 90-degree change in the direction of fluid flow within a pipe. It’s commonly referred to as an “elbow” or a “quarter bend.” A 90-degree elbow is compatible with various materials such as Carbon Steel, Alloy Steel, Stainless Steel, and LTCS. Emcor Engineering offers a wide range of sizes, shapes, and dimensions for these elbows. Customers highly appreciate the design and durability of our elbow products. Our team manufactures 90-degree elbows in strict adherence to both national and international quality standards, all while ensuring competitive pricing for our customers.
Emcor Engineering specializes in manufacturing and exporting 90-degree elbow fittings, with dimensions and weight contingent on factors such as material composition, pressure containment needs, and pipeline specifications. Our product line includes long radius and short radius options for 90-degree elbows, available in an array of materials like Stainless Steel, Duplex, Alloy Steel, Carbon & LTCS, Copper & Nickel Alloys, SMO 254, Super Duplex, Nickel, Monel, Inconel, and Hastelloy.
CARBON STEEL SPECIFICATIONS:
- Size : 1/2″ to 64″NB , ANSI/ASME B 16.9
- Schedule : 10/20/40/80/100/120/160/XXS
- Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
- Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
- Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
- Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
- Low Temp. CS : ASTM A-420 WPL6
- Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
- Size : 1/2″ to 64″NB, ANSI/ASME B 16.9
- Schedule : 10/20/40/80/100/120/160/XXS
- Stainless Steel : ASTM A 403 WP – TP 304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
- Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
- Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
- Schedule :10/20/40/80/100/120/160/XXS
- Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
- Copper Nickel : C70600(90:10), C71500(70:30), C71640
- NICKEL ALLOYS SPECIFICATIONS:
- Size : 1/2″ to 36″NB , ANSI/ASME B 16.9
- Schedule :10/20/40/80/100/120/160/XXS
- Nickel : UNS N02200, N02201
- Monel : UNS N04400, N05500, Alloy 20
- Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
- Hastelloy : UNS N10276, N06022, N10665, N06455
- SMO 254 Grade UNS S31254
- Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
- Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
- Manufacturer test Certificate En 10204, 3.1 & 3.2
- IBR Test Certificate Form IIIC
- TPI Inspection Release Note (as per customer requirement)
