Barred Tee

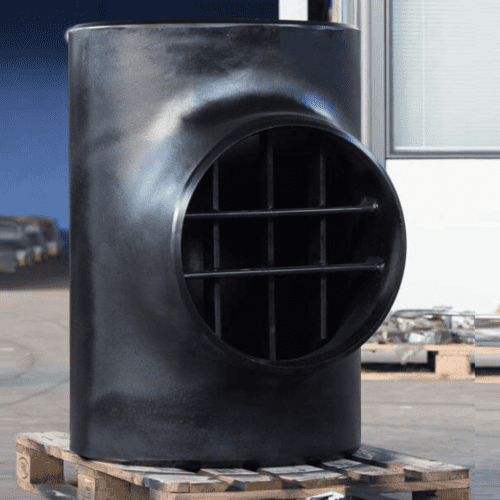

A barred tee is a pipeline fitting with a branch designed for pigging operations, featuring an internal restriction bar to prevent a pig from traveling down the branch connection. These bars are carefully welded to ensure they are flush with the pipeline’s inner diameter, preventing any hang-ups during pig passage. It is crucial to use bars made of a material similar or identical to the parent material for optimal performance. Emcor Engineering specializes in providing high-quality tees, offering various production grades, diameters, types, wall thicknesses, and other specifications to meet the unique requirements of our customers. With extensive experience in manufacturing barred tees, Emcor Engineering has established a strong reputation for delivering premium quality products known for their thickness, strength, and precision in the industry.
Emcor Engineering specializes in manufacturing and exporting barred tees, vital pipe fittings with two outlets. These fittings connect pipes in pigged pipelines, ensuring a smooth flow. Barred tee design prioritizes maintaining flow and withstanding pressure. Precise finishing removes sharp edges and imperfections, safeguarding pig sensors from damage during the pigging process.
CARBON STEEL SPECIFICATIONS:
- Size : 1/2″ to 80″NB , ANSI/ASME B 16.9
- Schedule : 10/20/40/80/100/120/160/XXS
- Carbon Steel : ASTM A 234 WPB, IS 1239 PART II
- Carbon Steel : DIN Standard – EN 10253-2 – P235TR2/P265TR2/P235GH/P265GH/P355N/P355NH
- Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
ALLOY STEEL, & LTCS SPECIFICATIONS:
- Alloy Steel : ASTM A 234, WP5, WP9, WP11, WP12, WP91
- Low Temp. CS : ASTM A-420 WPL6
- Other Services: Hot Dip Galvanizing, Sand Blasting, Coating – FBE/3LPE/PTFE
STAINLESS STEEL SPECIFICATIONS:
- Size : 1/2″ to 80″NB, ANSI/ASME B 16.9
- Schedule : 10/20/40/80/100/120/160/XXS
- Stainless Steel : ASTM A 403 WP – TP                                                     304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L / XM19
- Stainless Steel : DIN Standard EN 10253-4 / 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
DUPLEX STEEL & COPPER NICKEL SPECIFICATIONS:
- Size : 1/2″ to 48″NB , ANSI/ASME B 16.9
- Schedule :10/20/40/80/100/120/160/XXS
- Duplex Steel : ASTM A815- UNS S31803, S32205, S32750, S32760
- Copper Nickel : C70600(90:10), C71500(70:30), C71640
NICKEL ALLOYS SPECIFICATIONS:
- Size : 1/2″ to 36″NB , ANSI/ASME B 16.9
- Schedule :10/20/40/80/100/120/160/XXS
- Nickel : UNS N02200, N02201
- Monel : UNS N04400, N05500, Alloy 20
- Inconel : UNS N06600, N06601, N006625, N08800, N08810, N08825
- Hastelloy : UNS N10276, N06022, N10665, N06455
- SMO 254 Grade UNS S31254
- Aluminum – ASTM / ASME SB361 – 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
- Titanium – ASTM / ASME SB363 – Gr1, Gr2, Gr5, Gr7, G9, Gr12, Gr23
TEST CERTIFICATE:
- Â Manufacturer test Certificate En 10204 3.1 & 3.2
- Â IBR Test Certificate Form IIIC
- Â TPI Inspection Release Note (as per customer requirement)
